Product description

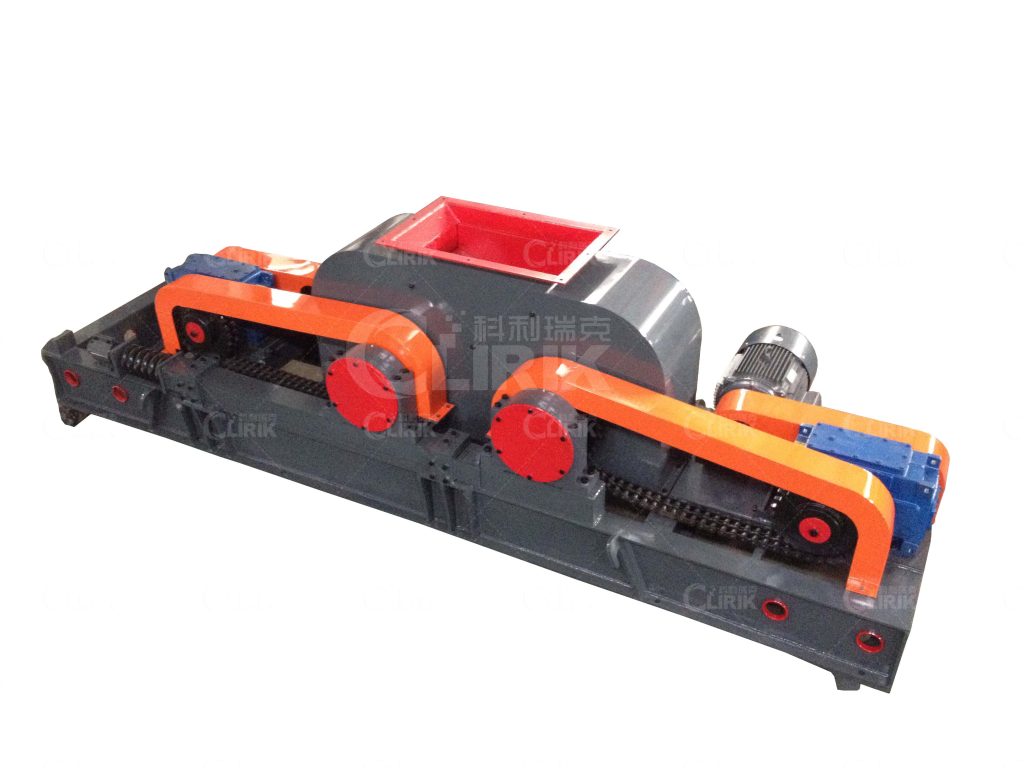

The Double Roller Crusher is a versatile machine, adept at crushing medium-hard materials across various industries such as cement, chemical, power, metallurgy, construction, and refractory materials. It efficiently handles materials like limestone, slag, coke, and coal for both primary and secondary crushing tasks.

Working features

Working principle

The Double Roller Crusher is assembled with key components including the rollers, roller support bearings, compression and adjustment mechanisms, and the driving unit. The crushing action is achieved through the low-speed, high-pressure squeezing of the rollers. Materials are fed vertically into the crushing chamber from the top of the machine and are then subjected to the intense pressure between the two rollers. The crushed materials are subsequently released due to gravity through the gap between the rollers. The minimum gap between the rollers determines the size of the discharged material. Adjustment of the discharge size is managed by:

A wedge or gasket adjustment device is positioned between the two rollers. The adjusting bolt at the top of the wedge device pulls the wedge upward, causing the movable roller to separate from the fixed one, thereby increasing the gap and the discharge size. Conversely, this action decreases the gap and size.
The gasket adjustment device alters the discharge size by varying the number or thickness of the gaskets inserted.

Specification

TypeModelInput Size (mm)Output Size (mm)Capacity (m3/h)Power (kw)Dimension (mm)Weight (kg)
Double Roll Mill2PGQ 610*400<362-93-9221785*2365*14153800
2PGQ 750*500<402-105-1218.5*22720*2700*140010800
2PGQ 750*700<402-106-1622*22800*3987*170512200
2PGQ 900*500<402-109-3022*22750*1790*206515000
2PGQ 900*900<402-1011-45~37*22750*2180*206516800
2PGQ 900*1200<403-1015-60~55*22750*2480*206520800
2PGY 1200*1000<403-1210-50~55*23690*3430*270046820
2PGY 1200*1200<403-1218-68~75*23690*3630*270048600
Four Roll Mill4PG 750*50030-602-103-1018.5+11/172760*3585*265019200
4PG 900*70040-1002-1016-2030+12/243150*4175*314728700
4PG 900*90040-1002-1020-2545x23150*2650*314731386
4PGY 1200*100020-403-1043-6875+40/555410*5600*360067000
Double-geared roller crusher2PGC 450*500100-20025-10012-32<112260*2206*7663100
2PGC 600*750300-60050-12550-75<223265*2850*13107400
2PGC 900*900<80075-15060-110<303945*3405*189513670
2PGC 920*1200<80040-10090-150<753848*3480*139416730
2PGC 1200*1500<1000-100150-2502*558010*4050*205052000
